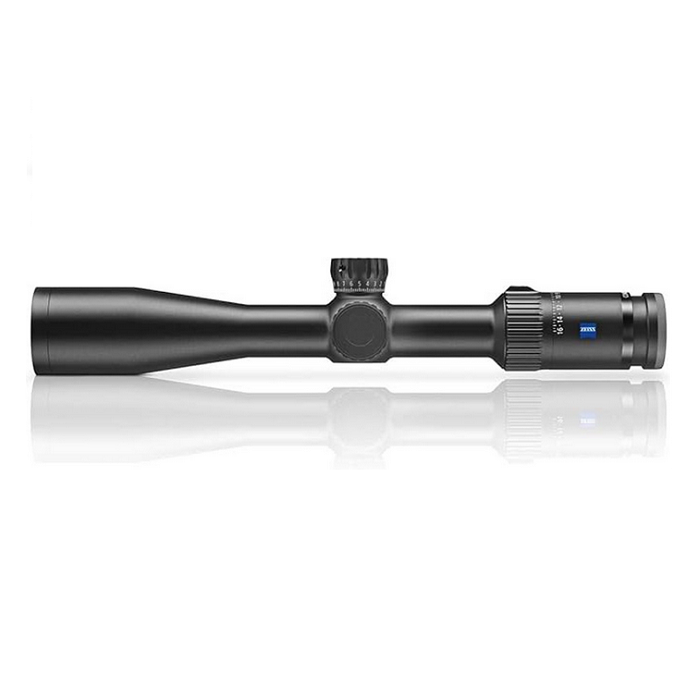

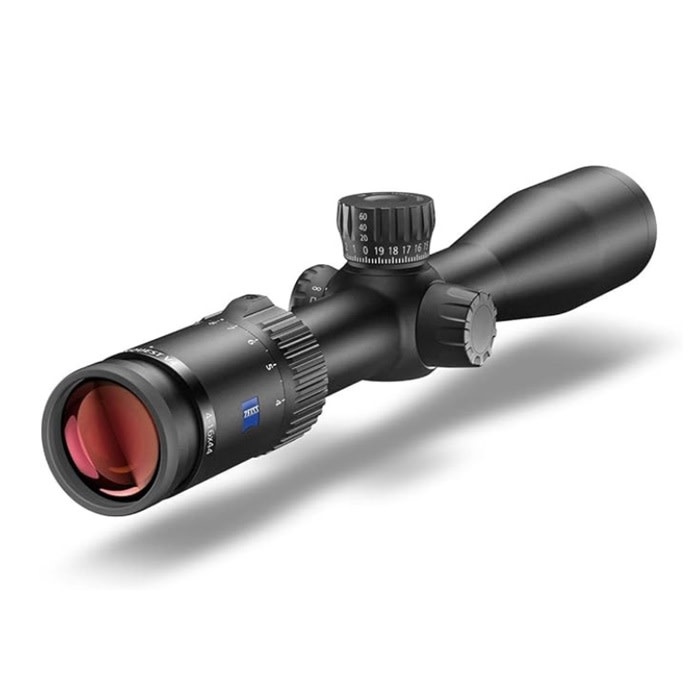

ZEISS CONQUEST V4 4-16x44 Z-PLEX w/#20

The Conquest V4 line of high-performance riflescopes combines the tried-and-true ZEISS optics concept with a rugged and functional design. Their compact design and perfect balance between a wide field of view and large magnification range is ideal for all types of hunting. The V4 models are equipped with a 4x zoom and functional, high-precision, and fully reliable mechanical components.

Special models have a ballistic turret with a wide reticle adjustment range (elevation and windage). As a result, the hunter has the flexibility needed for a variety of different hunting methods. Optional ballistic reticles are also available that allow the hunter to quickly make elevation and azimuth corrections with no mechanical adjustment necessary.

Thanks to its compact and lightweight design, the Conquest V4 4-16x44 is ideal for active hunting and hunting in the mountains. Its zoom range makes this V4 the perfect choice for medium and long-distance shots.

Performance/Specifications

Magnification: 4 – 16 x 44
Effective lens diameter: 33.2 – 44 mm
Light transmission: 90%
Exit pupil diameter: 8.5 – 2.8 mm
Twilight factor: 11.5 – 26.5
Field of view at 100 m (yds): 9.5 – 2.4 m (28 – 7 ft)
Objective viewing angle: 5.4° – 1.4°
Diopter adjustment range: + 2.0 | − 3.0 dpt
Eye relief: 90 mm (3.54 ")
Parallax setting: 9.1 m – ∞ (10 yds – ∞)
Adjustment range at 100 m: 230 × 175 cm
Adjustment per click at 100 m: 1/4 MoA (0.7 cm /100 m)
Centre tube diameter: 30 mm
Eyepiece tube diameter: 44 mm
Objective tube diameter: 50 mm
Features: LotuTec | Nitrogen filled
+ | +
Water resistance
400 mbar
Physical
Operating temperature: − 25°C | + 50°C (− 13°F | + 122°F)
Length: 356 mm (14.0 ")
Weight (without inner rail): 640 g (22.6 oz)
